One Owner Machine,Has good specifications with lots of tooling.

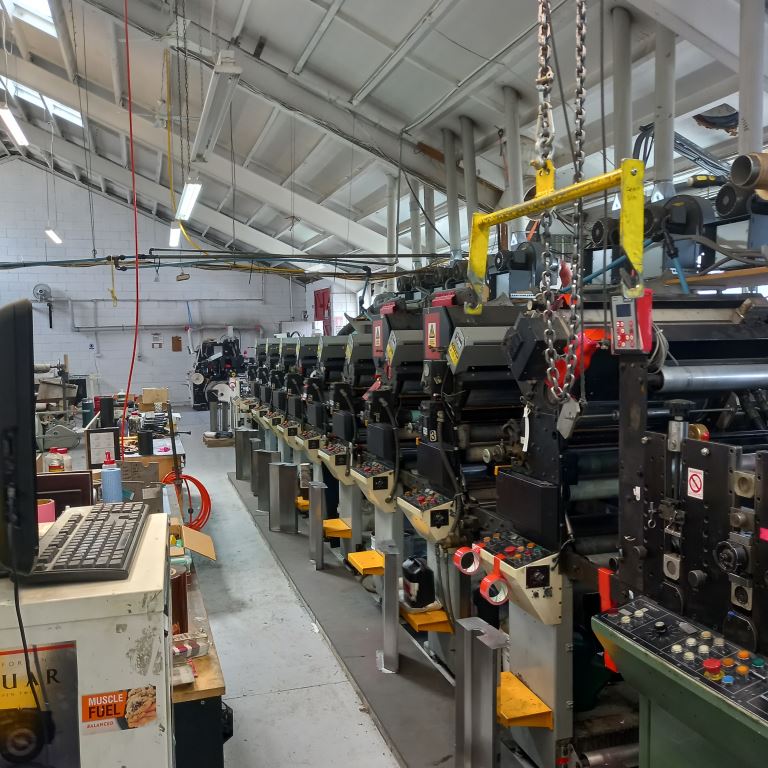

8 COLOUR including lamination station- middle air nip roll station used for lamination and reverse angle doctor blade,(The 8th station can be used for lamination(wet lamination), coating or printing.Simply need to change the anilox roller and web path from the second lamination film.
UNWIND 42" including 3" core chuck,WEB WIDTH 425MM,
BST web guide,splicing table,hydraulic roll lift,
6x IR lamps(not used by current owner- fans and blowers to be sent with the machine),
1 x diecut station, sheeting &cross perforating station for top cut only , 3 doctor blade assemblies,closed loop tension control on variable infeed.Can slit, sheet or die-cut at the last die unit (and bundle with a conveyor added )Thickness range 0.001" to 0.008" (25.4 to 250 microns or estimated 12 pts) Interdeck (full)VTI UV UNITS.Mechanical and electrical integration for SOA corona treater. 38,000 HOURS. Has 7 chill rollers( one on each print unit),plus chiller unit BST power scope camera 4000 ,Can do cold foil - the owner used a plate and foil adhesive.A roll of foil on the top unwind was used to make an impression with the plate on the foil (cold foil)and the adhesive makes it transfer to the material/substrate/label.
It can also handle waterbased inks.This water based facility will need to be recommissioned by an electrician.
NO turn bar.No delam/relam.Turn bar 370mm can be provided for an additional cost,(will need to be installed with some modification to the press on reinstallation).
Can handle BOPP Un supported Film/paper/pressure sensitive label/tag. ESTIMATED Tooling - 20 ANILOX Rollers & 9 Magnetic Cylinders - 90,96,98,108,110,118,124,128,140,176 plus Print cylinders:
74T X4,90T X 8 , 92T X 8, 96T X8, 98T X 5, 104T X 7, 108TX5,110T X10, 113T X 9, 116T X 7,120T X7,124T X7,126T X 22,128T X 8,130T X 7, 136 T X 7,138T X 8, 140T X 1,148T X 7,150T X8,154 X 8 160T X 7.Electronic drive not servo driven. Spare Parts available from PCMC USA. MACHINE COMES WITH 6 HOT AIR MOTORS IF NEEDED.
Working area:18m x 5 metres x 1.6 metres.Will be packed into 2 x 40 ft plus 1 x 20 ft conatiners. Ex Melbourne Australia. Available Now.
Video Link https://www.dropbox.com/s/neo05l5sfgm76yi/29045%20aquaflex_1.mp4?dl=0
